GRUNDFOS - 3 Speed Pumps - CAST IRON UPS 26-150F 115 3-speed, 1/2 HP, flanged housing - 95906630

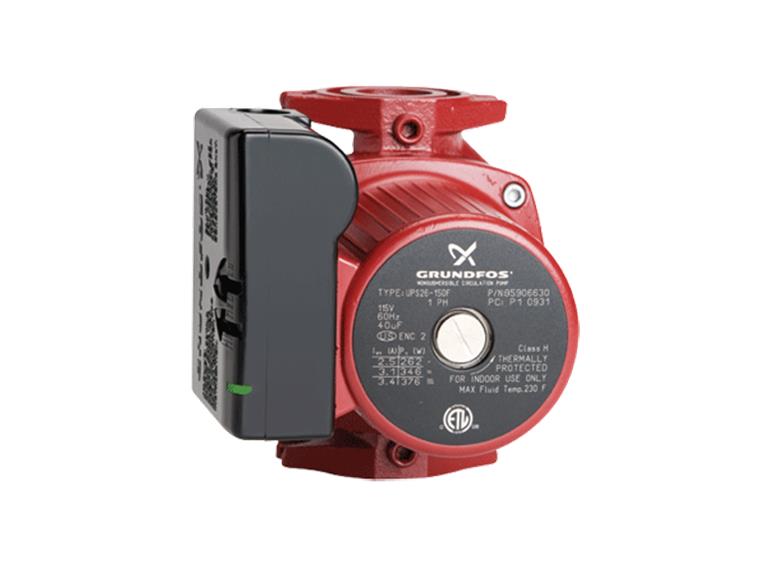

The Grundfos UPS 26-150 F Circulator Pump (MPN 95906630) is a heavy-duty 3-speed cast iron hydronic circulator engineered for commercial and large residential heating, cooling, geothermal, and HVAC systems. Powered by a 115V, 1/2 HP single-phase motor, this maintenance-free canned rotor pump delivers up to 52 GPM with a maximum head of 45 ft. Featuring a durable cast iron housing, ceramic shaft and bearings, stainless steel rotor can, and corrosion-resistant composite impeller, the UPS 26-150 F provides dependable, energy-efficient circulation for demanding closed-loop systems. Its three-speed selector allows installers to optimize flow and head for peak system performance.

Cross References

1. Grundfos — 95906630 (UPS 26-150 F)
2. Grundfos — UPS 26-150 F
3. Grundfos — UPS 200 Series

No verified direct cross-reference from another manufacturer was found for this exact model. System sizing should always be verified before selecting an alternative.

Usage

The UPS 26-150 F is designed to circulate water in closed-loop hydronic heating and cooling systems. It is commonly installed in commercial boilers, radiant heating systems, chilled water loops, geothermal systems, district heating networks, fan coil systems, and primary/secondary pumping applications. The integrated 3-speed selector allows installers to match pump performance to the system's required flow and head, improving efficiency while maintaining reliable circulation. Because this model has a cast iron housing, it is intended for closed-loop HVAC applications and should not be used for potable domestic hot water systems.
