Topp - 18x22 Sump Basin, EC18G2 Simp Cvr & 4"gro - E-C18G-2

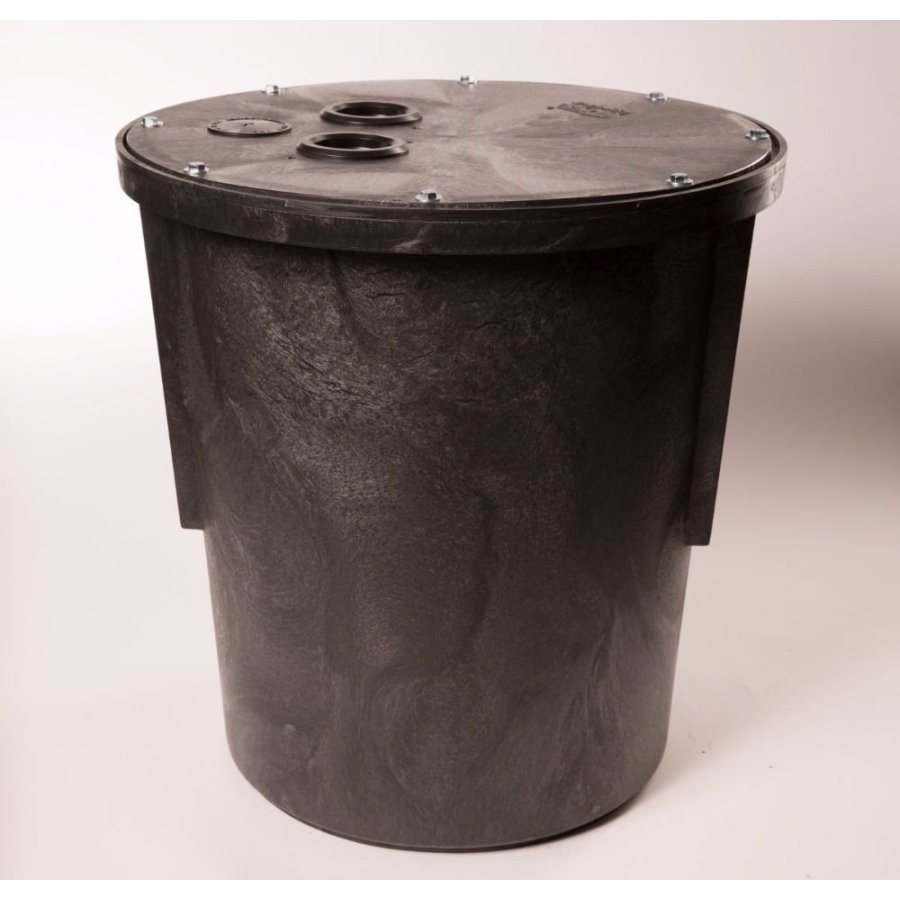

The TOPP Evolution E-Series 18 in × 22 in sump basin package is designed to collect groundwater, drainage water, or wastewater for removal by a separately installed sump or sewage pump. The rugged structural-foam basin offers approximately 22 gallons of capacity and includes a 4-inch inlet grommet for connecting incoming drain piping. Its E-C18G-2 simplex structural-foam cover provides dedicated grommet openings for the pump discharge and vent piping while helping keep debris out of the pit. Engineered for durability, easy installation, and long-term corrosion resistance, this TOPP sump basin system is ideal for residential basements, crawl spaces, utility rooms, and light commercial drainage applications.

Cross References

TOPP Industries — E2-22001: 18 in × 22 in Evolution E-Series structural-foam basin with 4 in inlet grommet

TOPP Industries — E-C18G-2: 18 in simplex structural-foam cover with 2 in × 2 in grommet configuration

TOPP Industries — E2-2200: 18 in × 22 in Evolution E-Series basin without an inlet grommet

Usage

This TOPP basin-and-cover package is installed below floor level to form the collection pit for a sump or sewage pumping system. Groundwater, foundation-drain water, or approved wastewater enters through the 4-inch side inlet and accumulates inside the basin. A compatible submersible pump is positioned at the bottom, with its discharge pipe and any required vent routed through the cover grommets. As the liquid rises, the pump’s float switch activates and transfers the collected water to an approved discharge location. The cover is secured to the basin to limit debris entry and provide a cleaner, safer installation. Pump, check valve, discharge piping, and electrical components are normally purchased separately.
