5M - 1/4 TURN ANGLE STOP VALVE OD

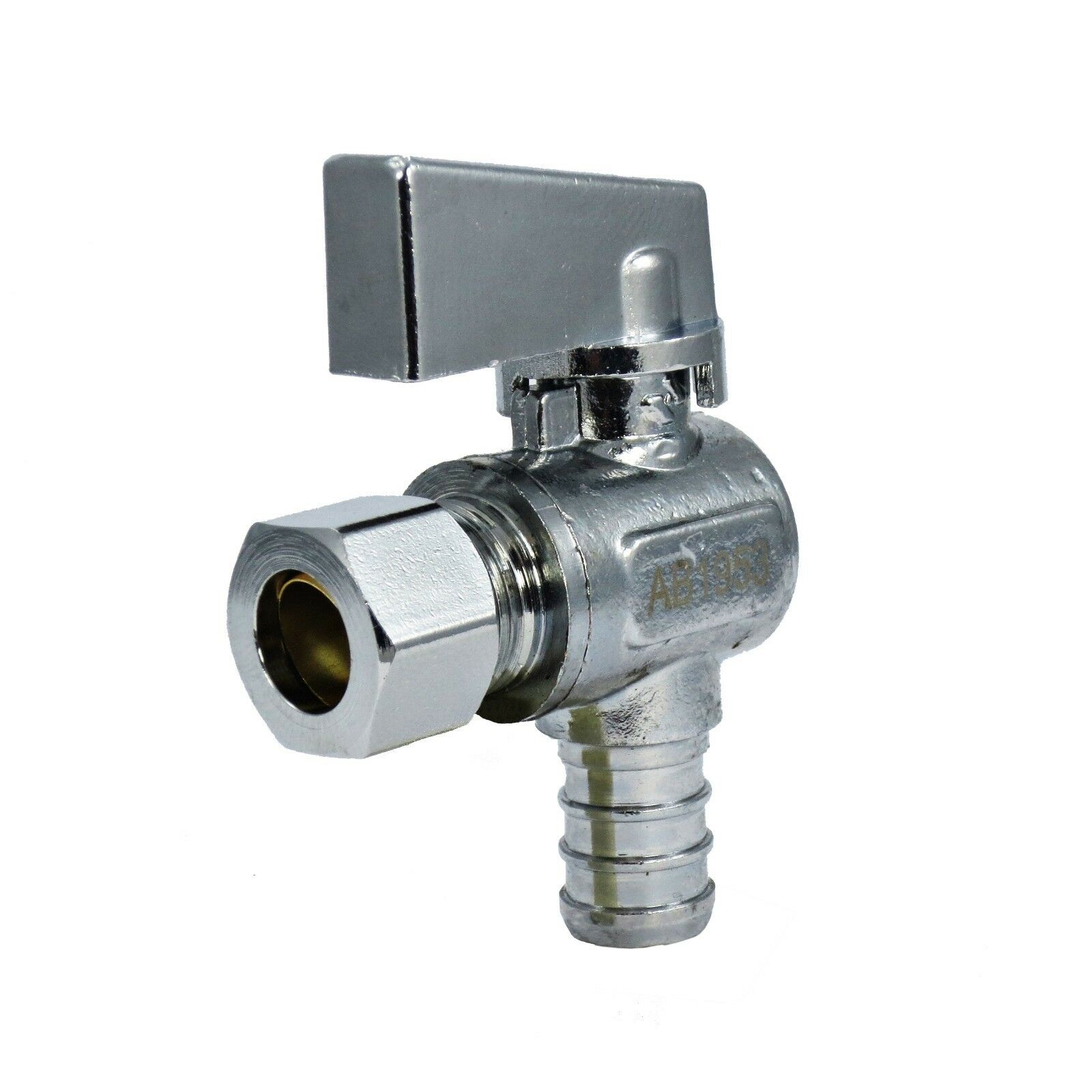

The 5M 1/4 Turn Angle Stop Valve – F1960 PEX × OD Compression is a chrome-plated brass fixture shutoff valve designed for direct connection to 1/2 in ASTM F1960 expansion PEX tubing. Its 90-degree angle body redirects the water supply toward the connected fixture, while the compression outlet is available in 1/4 in OD and 3/8 in OD sizes for standard fixture and appliance supply tubing. The quarter-turn ball-valve mechanism provides fast and dependable water control with a simple 90-degree handle movement.

Usage

This angle stop valve is commonly installed where a 1/2 in PEX-a water line exits through a wall or floor and must connect to a faucet, toilet, refrigerator, ice maker, water filter, humidifier, coffee machine, or similar fixture. The F1960 expansion barb is installed using a compatible expansion ring and expansion tool, while the OD compression outlet secures the fixture supply tube using a compression nut and ferrule.
