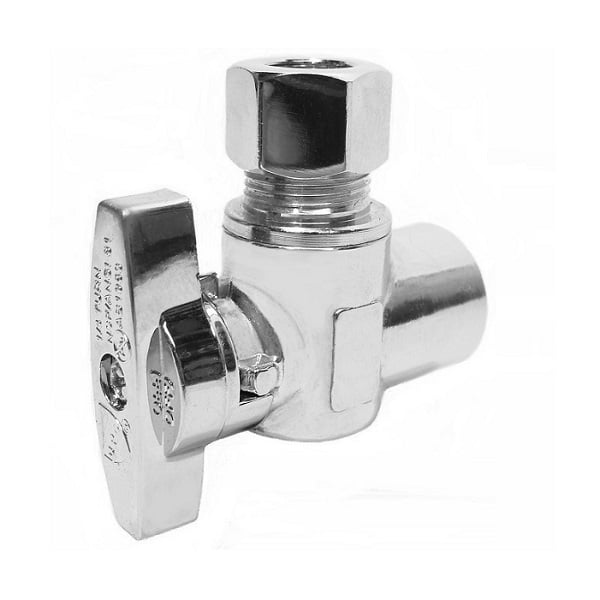

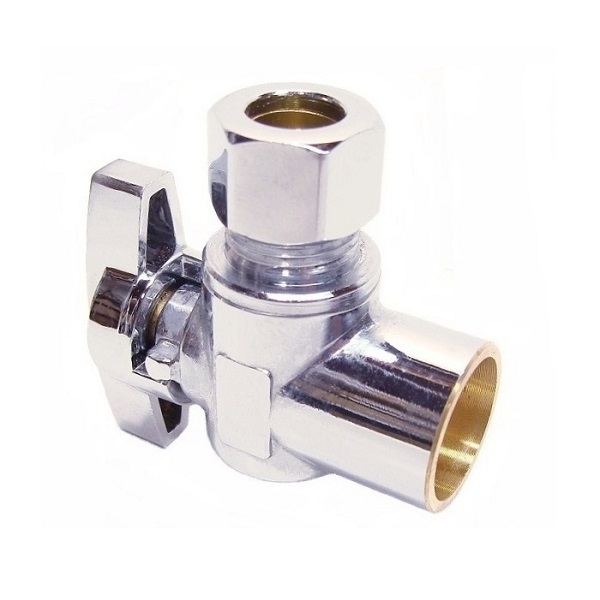

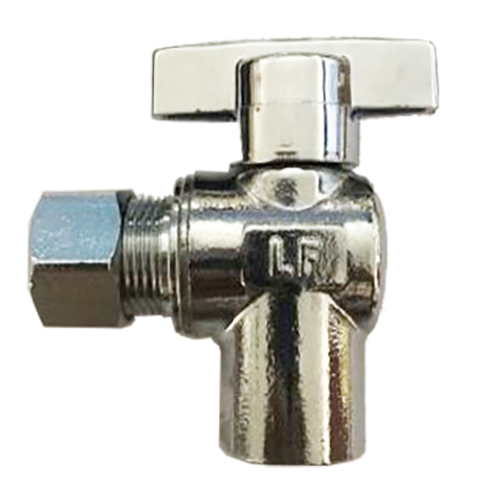

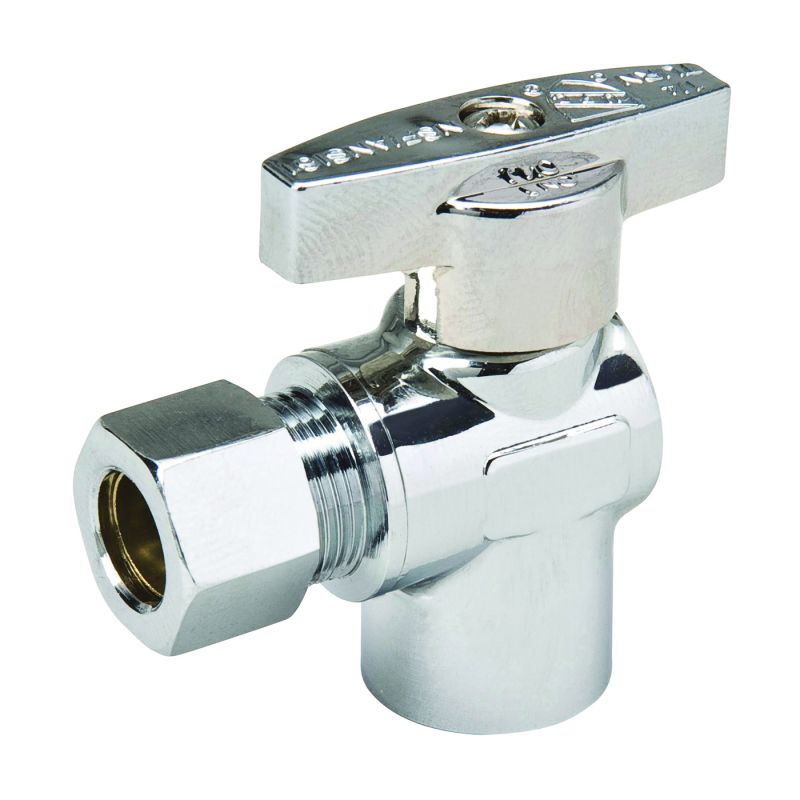

5M - 1/4 Turn Angle Stop VALVE w/ABS Straight Handle -1/4" Comp. X 1/2" Sweat

The 5M 1/4 Turn Angle Stop Valve with ABS Handle is a lead-free brass angle shutoff valve designed to provide reliable water control for plumbing fixtures. It features a smooth quarter-turn ball valve operated by a durable ABS straight handle, allowing quick and effortless shutoff. The valve is manufactured with a 1/2 in copper sweat inlet for permanent soldered installation and a 1/4 in OD compression outlet for connecting small-diameter fixture or appliance supply lines. Its chrome-plated finish provides excellent corrosion resistance and an attractive appearance for exposed plumbing installations in residential and commercial applications.

Usage

This valve is installed on a 1/2 in copper water supply line to provide individual shutoff control for appliances and fixtures using a 1/4 in compression supply tube. The sweat inlet is soldered onto copper tubing, while the compression outlet connects directly to the supply line without soldering. It is commonly used for refrigerator ice makers, reverse osmosis systems, water filtration units, coffee makers, humidifiers, and other small water-supplied appliances where a compact quarter-turn shutoff is required.
