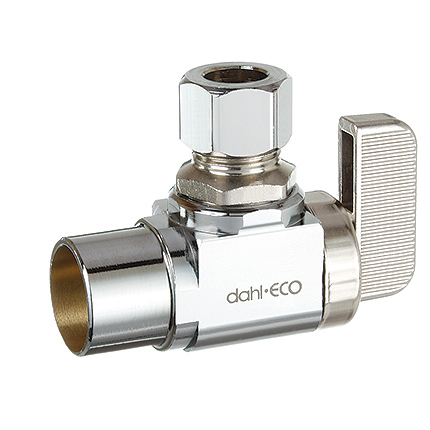

DAHL - Female Solder X OD Comp, Angle

The DAHL Angle Supply Stop Valve is a lead-free brass angle shutoff valve designed to provide dependable water control for residential and commercial plumbing fixtures. It features a 1/2 in female solder (sweat) inlet for permanent installation on copper tubing and is available with either a 1/4 in OD compression or 3/8 in OD compression outlet to accommodate a wide range of fixture and appliance supply lines. The valve utilizes DAHL's quarter-turn mini-ball™ design, delivering smooth operation, bubble-tight shutoff, and long service life. Its rough brass finish offers excellent corrosion resistance, while the 90-degree angle configuration is ideal for installations where the supply pipe exits from the wall. Every DAHL valve is factory pressure-tested to ensure reliable performance.

Usage

This angle stop valve is installed on a 1/2 in copper water supply line to provide individual shutoff control for sinks, lavatories, toilets, bidets, refrigerators, ice makers, water filtration systems, instant hot dispensers, and other plumbing fixtures. The female solder connection is permanently soldered to copper tubing, while the compression outlet connects directly to a standard fixture supply tube without soldering. The angle design allows a clean installation where the water supply comes through the wall and enables fixtures to be serviced or replaced without shutting off water to the entire building.
