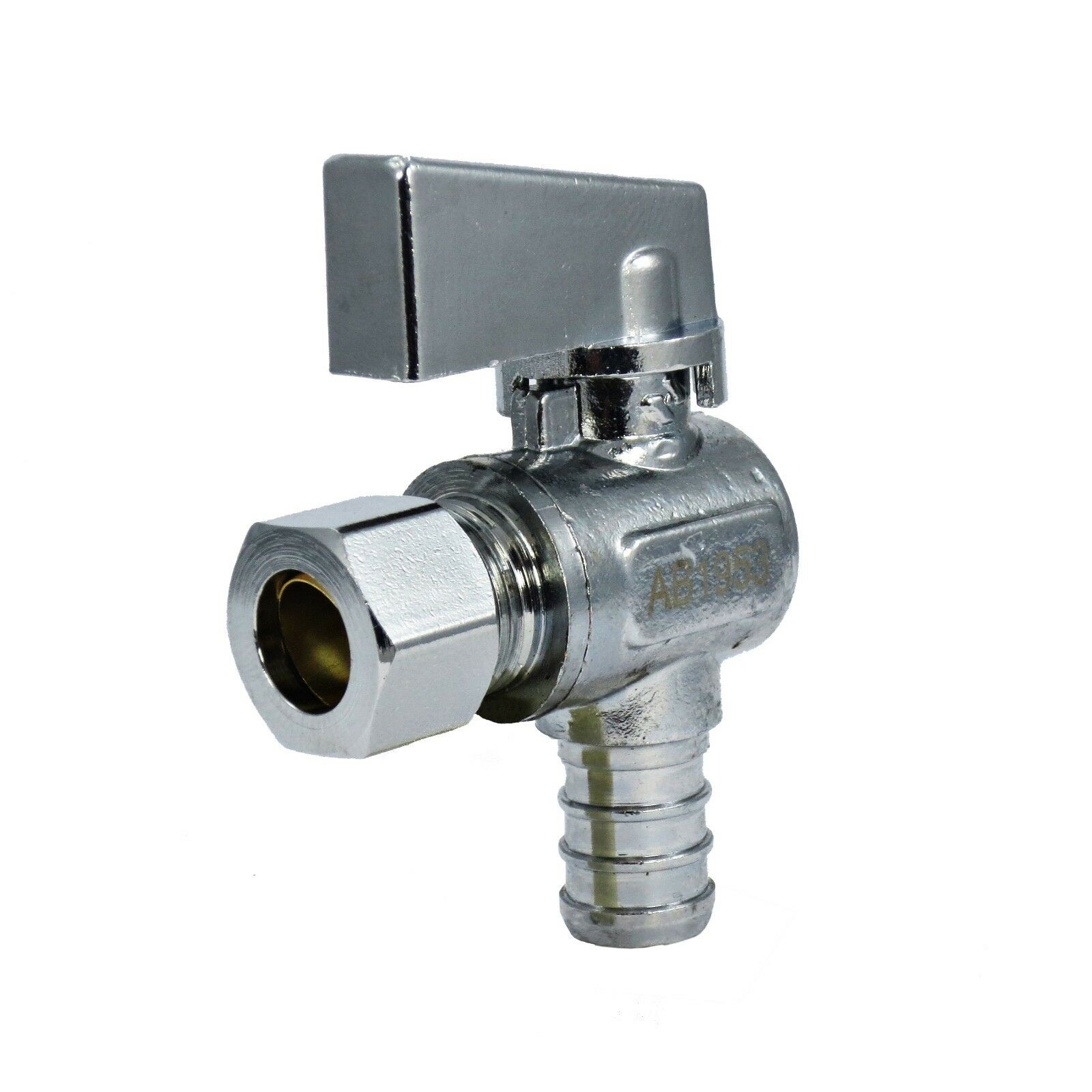

5M - 1/4 Turn Angle Stop VALVE w/ Straight Handle

The 5M 1/4 Turn Angle Stop Valve with Straight Handle is a lead-free brass angle shutoff valve designed for PEX plumbing systems. It features a 1/2 in PEX barb inlet for crimp or clamp-ring installation and is available with either a 1/4 in OD or 3/8 in OD compression outlet for connecting standard fixture supply lines. The valve utilizes a quarter-turn full-port ball valve with a durable zinc straight handle, providing fast, smooth operation and reliable bubble-tight shutoff. Its chrome-plated finish offers excellent corrosion resistance and a professional appearance, making it ideal for residential and commercial potable water applications.

Usage

This valve is installed on a 1/2 in PEX water supply line to provide individual shutoff control for sinks, lavatories, toilets, bidets, refrigerators, ice makers, water filtration systems, and other plumbing fixtures. The PEX barb inlet connects to PEX tubing using a crimp ring or clamp, while the compression outlet attaches directly to a standard fixture supply tube. Its 90° angle configuration is ideal where the water supply exits from the wall, allowing fixtures to be isolated for maintenance or replacement without shutting off the water supply to the rest of the building.
