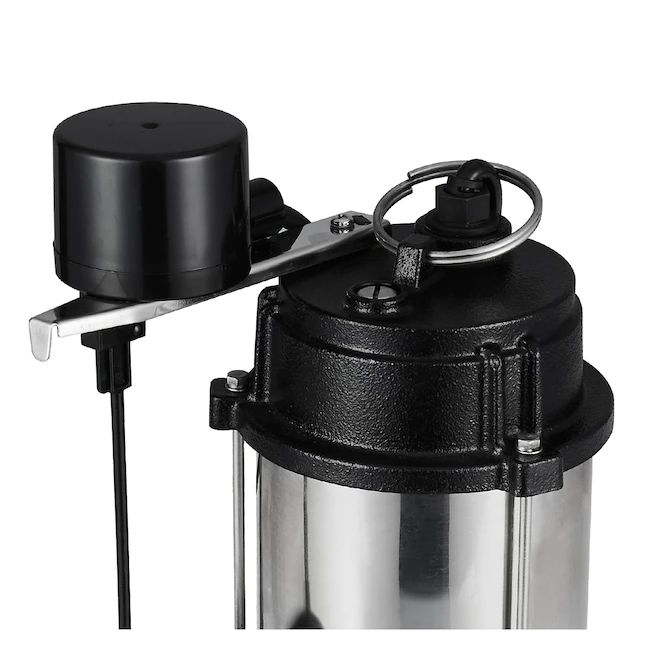

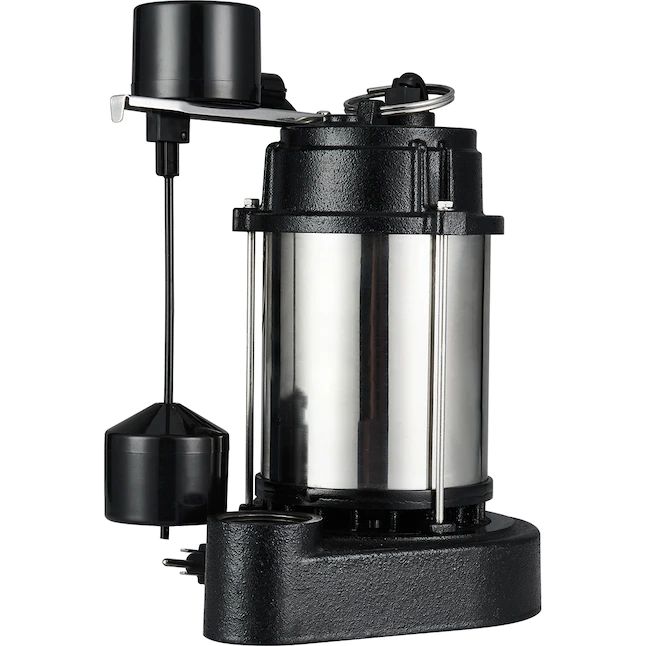

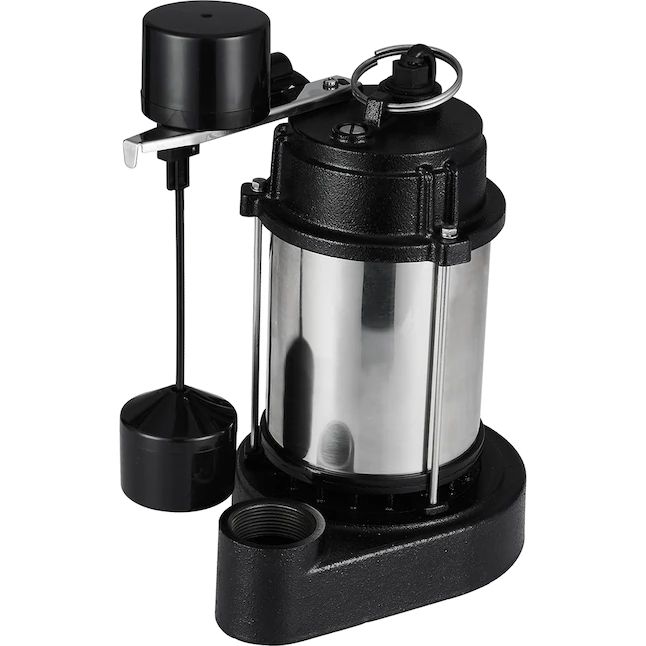

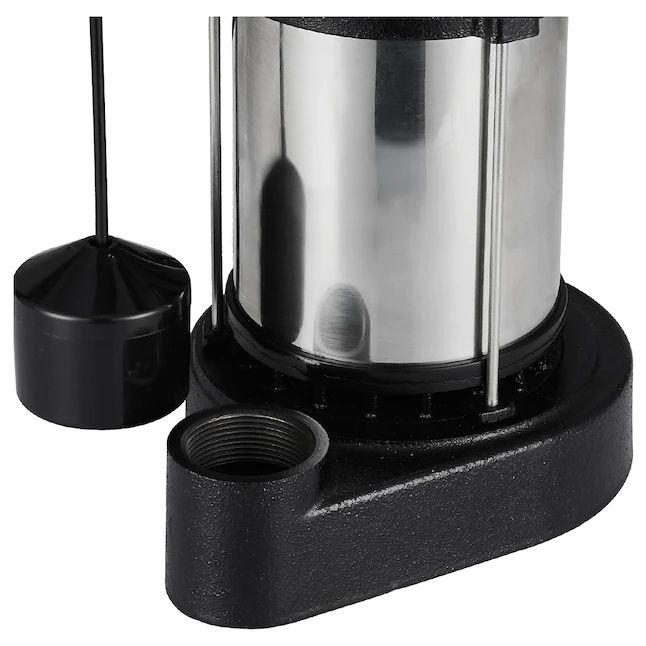

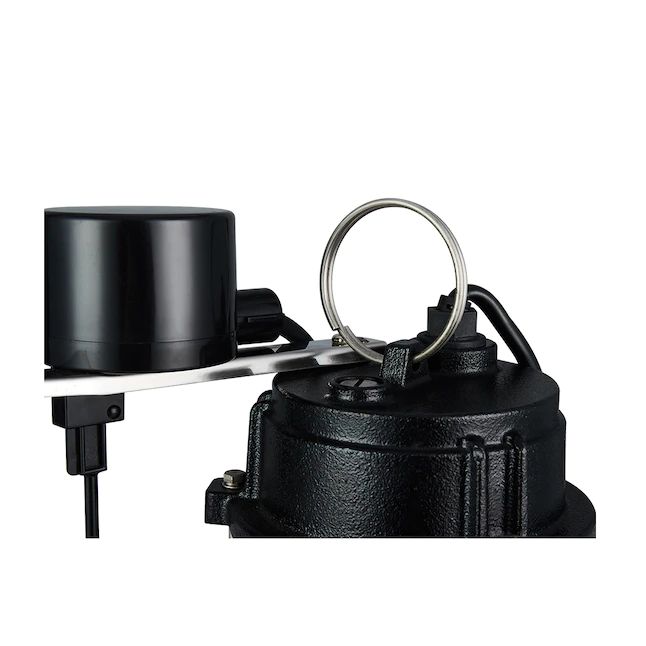

Stainless Steel Housing-Cast Iron Base Sump Pump, 1/3 HP, 3630 GPH Flow Rate/LSD-253SV

The LEO LSD-253SV is a durable 1/3 HP automatic submersible sump pump engineered for residential basement drainage, floodwater removal, irrigation, and general dewatering applications. It combines a corrosion-resistant stainless steel motor housing with a heavy cast iron volute and base for dependable performance and stable operation inside the sump pit. The oil-filled permanent split capacitor motor includes automatic thermal overload protection, while the vertical float switch provides reliable automatic start-and-stop operation in compact basins. Delivering a maximum advertised flow of 3,630 GPH through a 1-1/2-inch NPT discharge, the LSD-253SV is suitable for residential sump systems and emergency water removal.

Additional Information

Cross References

LEO — LSD-253SV: 1/3 HP sump pump with vertical float switch

LEO — LSD-253S: 1/3 HP version with tethered piggyback float switch

LEO — DC659: Distributor reference number used for the LSD-253SV

Usage

The LEO LSD-253SV is installed in a residential sump basin to remove groundwater entering through foundation drains, basement drainage systems, or other collection piping. As the water level rises, the vertical float moves upward and automatically starts the pump. Water is then discharged through the 1-1/2-inch NPT outlet to an approved exterior drainage point. When the water level falls, the float automatically shuts the pump off. The unit may also be used for flooded-basement dewatering, irrigation-water transfer, and suitable septic-tank liquid pumping, subject to local requirements. It is intended for drainage water and light effluent, not raw sewage containing large solids.
